MSX 8235 PS2 Keyboard

Champion (395)

11-04-2016, 16:23

I am trying to add a PS2 port to my MSX 8235 so i can use any PS2 PC keyboard.
The keybard matrix of this msx has 9 Y-lines (0 to 8) and 8 data lines (0 to 7)
I was thinking of using a Microcontroller to convert the PS2 signals to the MSX keyboard matrix
Any ideas or tips on how to build this converter are welcome.

P.s.
An example of a PS2 port for ZX Spektrm

Thankx

Por Pencioner

Scribe (1564)

11-04-2016, 17:25

look here
http://caro.su/msx/kbd4msx/y_yis503.htm
page in russian but it contains the schematics. Kamil Karimov (caro) is the author. There's 4 versions - for Daewoo CPC 400, YIS503II, YIS503III and YIS805

also
http://msx.gouget.com.br/2014/06/24/ps2-keyboard-to-msx-with...

Por AxelF

Champion (395)

11-04-2016, 20:23

Thanks, very usefull information

Por brawaga

Resident (56)

17-04-2021, 03:57

@AxelF, howts goin? Any progress on 8535 PS2 MSX keyboard? Unusual choice for the task among what I saw. Did you chose 8535 for its pin count?

Por bsittler

Master (251)

17-04-2021, 05:33

I assume 8235 here means the MSX model https://www.msx.org/wiki/Philips_VG-8235 rather than Atmel 8235 ATtiny20 8-bit microcontroller http://ww1.microchip.com/downloads/en/devicedoc/atmel-8235-8... though of course it might be a situation of "why not both?"

Por st1mpy

Paladin (932)

17-04-2021, 11:18

I think attiny 20 doesn't have enough pins. (Also depending on the design, you want chips that can do 8 bit ports rather than individual gpio and make sure they have enough interrupt capable pins. And 5v logic tolerant chips would be easier. When I was experimenting with external cartridge slot keyboard design, I found that There are several designs out there, but most of them in code are returning the next row that's being asked in the matrix, which means the chips are too slow (to respond and process) and wouldn't work in games that has its non bios scan routine that doesn't scan all rows in order. I think it's better suited for a cpld atleast, or a fpga.

Por Danjovic

Champion (336)

17-04-2021, 15:24

st1mpy wrote:

I found that There are several designs out there, but most of them in code are returning the next row that's being asked in the matrix, which means the chips are too slow (to respond and process) and wouldn't work in games that has its non bios scan routine that doesn't scan all rows in order.

Indeed, many designs can not respond quicly enough (around 3.77us) and rely on bios sequential scan of the keyboard. They may work in Basic, but will fail on any software that calls SNSMAT to read specific rows.

Karo's design can answer in roughly 1.5us. My recent design can do in roughly the same (1.25us).

Tiny20 will certainly not fit but it is possible to reduce the amount of interrupt pins required by using few diodes. The 6 pins of ports B or C of an ATmega(4/8/16/32)8 are enough to scan up to 12 rows.
.

Por damouze

Supporter (9)

12-07-2022, 09:15

Could this work?

Por damouze

Supporter (9)

12-07-2022, 10:42

I found myself intrigued with this question as well recently and as I have been dabbling with electronic design of late (really for the past couple of years), I decided to try my hand at it.

So, could this work?

PS/2 keyboard to MSX adapter as Arduino hat

Por Wierzbowsky

Guardian (3603)

12-07-2022, 19:37

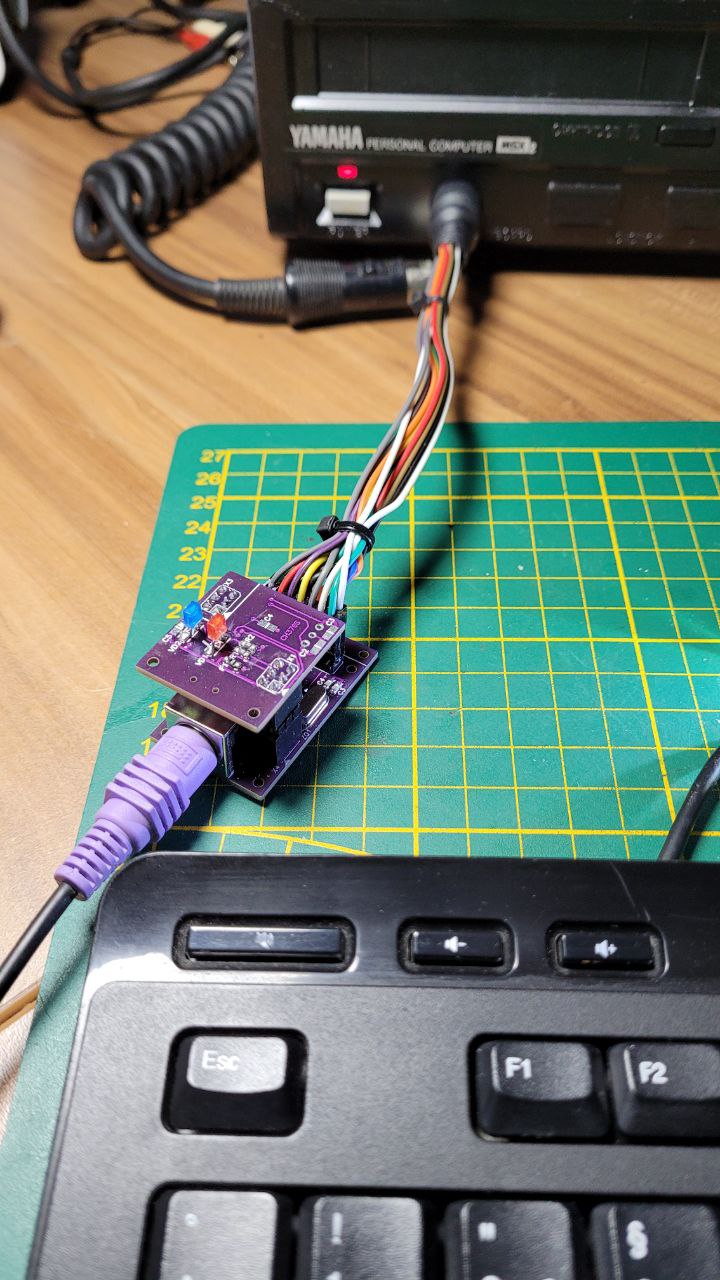

Caro is currently working on the combo PS2/USB adapter that could be suitable for Yamaha 503, 805, Sony Fx00 and even Daewoo 400 series computers. I am already testing the prototype.

Por Danjovic

Champion (336)

14-07-2022, 17:15

damouze wrote:

So, could this work?
PS/2 keyboard to MSX adapter as Arduino hat

This design have output pins along all three ports of the microcontroller, hence it will not be able to respond quickly enough.
