Joymega adapter on small PCB/connector (any interest?)

Van user888

Expert (66)

01-03-2017, 12:19

sd_snatcher wrote:

Tests finished. The joymega adapter made with the NC7ST04 worked perfectly.

Pictures, or it didn't happen

Van sd_snatcher

Prophet (3645)

01-03-2017, 13:02

Here they are:

Van Louthrax

Prophet (2436)

01-03-2017, 13:36

So that's really a super small chip

Van hamlet

Scribe (4105)

03-03-2017, 00:28

I would get confused if I had to solder this. Compliments!

Van roadfighter

Champion (452)

17-03-2017, 06:29

I have ordered some pcb (6) for a 7404 smd chip its a bit bigger but more suitable for my taste.
The pcb is 13x19 mm so it's small, i will put up some pictures when i have made some.
The "spare" pcb will be for sale, for a humble price. But first the pcb have to arrive
My version of the pcb for the NC7ST04 would have been 13x13 mm, but the 7404 smd chips are easier to get.

Van roadfighter

Champion (452)

01-04-2017, 18:51

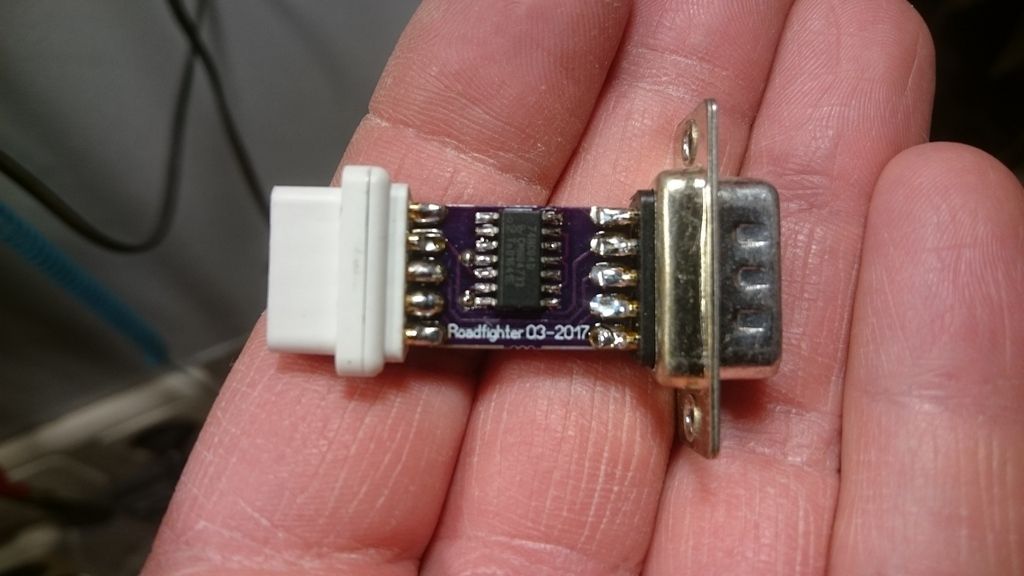

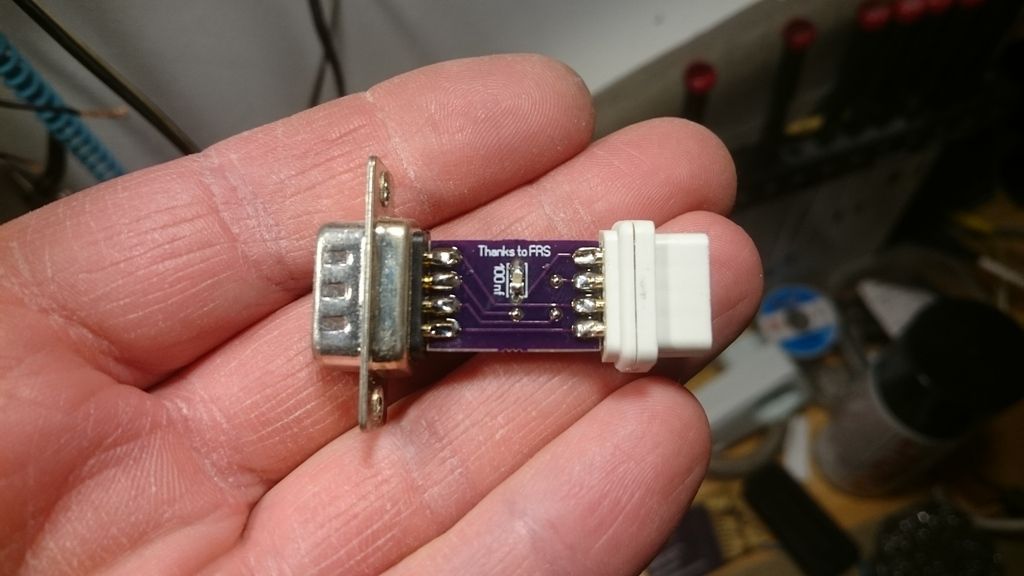

The PCB's end results

Van sd_snatcher

Prophet (3645)

02-04-2017, 04:37

Very nice indeed! Great work!

Van roadfighter

Champion (452)

04-04-2017, 22:26

Any interest in the new pcb's ?
Maybe fully assembled to ?
Please let me know and i can order some more and also make some for those who don't have the soldering skills or don't want to have the hassle of making them there self.
Depending on the amount of interest the price would be around 6 euro for a fully assembled pcb.(with connectors of course like the pictures)

Van Piter Punk

Master (228)

04-04-2017, 22:42

I have interest to buy some of those adapters fully assembled. At least four of them.

Van msxtrd

Champion (271)

04-04-2017, 23:33

4 here too.
